Shipbuilding and Repair







Located in the centre of the french Atlantic coast, the Shipbuilding and Repair Centre has powerful tools and brings together companies with complementary expertise in the field of repair and shipbuilding.  Atlantic Port La Rochelle offers specialised human and technical resources for the activity of this site.

Carte Europe LR 250



Major infrastructures

bandeau prcn 1

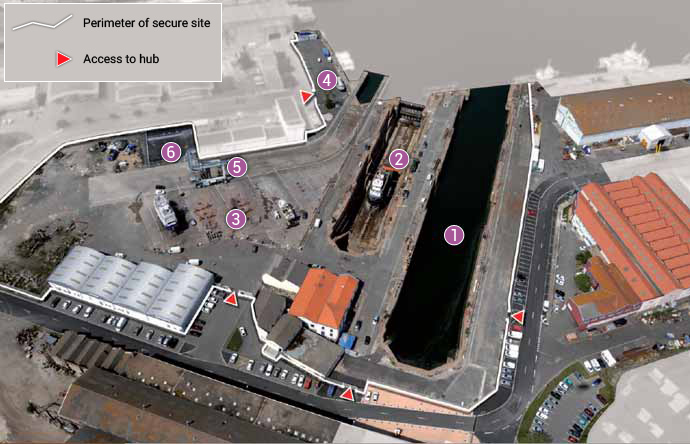

Perimeter of secure site (clic on image to enlarge)

vue prcn 2

The dry docks :


1  Dock n° 1: useful length 176 m, useful width 21,86 m

2  Dock n° 2: useful length 107 m, useful width 13,84m



Repair area afloat and dry :

3   A careening area for dry repairs of 6 000 m².

  Two docks repair afloat:

Quai Camaret pier equipped with a pontoon (90m) with secure access,
and central barrier of the wet dock (see photo below).

Tools :


5   An elevator 250 tonnes.


Services :

A secure area under 24h / 24, 7 days / 7 surveillance in accordance with ISPS regulations,

Emergency supplied 1,000 kVA electrical substation.


6  An area for waste collection.


A port certified ISO 9001 and ISO 14001 on all its activities.



The site is connected to a treatment unit of runoff water.

Dock N° 1

bandeau prcn 2



DESCRIPTION
Useful length: 176 m
Useful width: 21,86 m
Dry end timing: 6 hours
Dedicated area surrounding dock: 2,000 m2

AT DISPOSAL
Available power supply:
1 plug 400V 125A (3-phase + neutral + earth)
1 plug 400V 63A (3-phase + neutral + earth)
2 plugs 230V 16A (phase + neutral + earth)
3 electrical outlets adjustable from 50A to 250A (3-phase + neutral)
Fresh water supply
Fire defences

forme 1



Dock N° 2

bandeau 3



DESCRIPTION
Useful length: 107 m
Useful width: 13,84 m
Dry end timing: 3 hours
Dedicated area surrounding the dock: 2,000 m2

AT DISPOSAL
available power supply:
3 plugs 400V 125A (3-phase + neutral + earth)
6 plugs 400V 63A (3-phase + neutral + earth)
6 plugs 230V 16A (3-phase + neutral + earth)
Fresh water supply
Fire hydrant alongside the dock

forme 2 400



Central groyne of the lock basin

Epi central baf 2



Clic on image to enlarge and see all of the lock basin and dry docks

Epi central du bassin à flot
